Reading a diagram

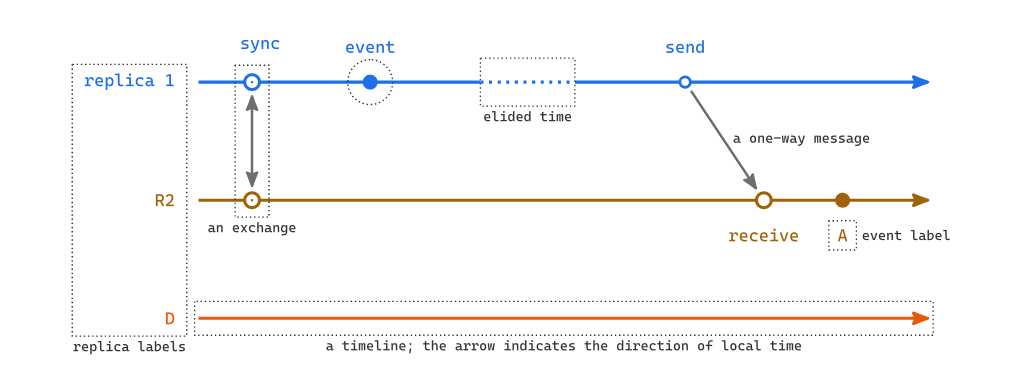

In following is table, each mark is accompany by some intended meaning; but authors might choose different semantics [1].

Mark	Meaning
Solid dot	A local event, that happens at specific moment in the replica’s timeline.
Hollow dot	The replica receives events or messages from another replica.
Small hollow dot	A replica sends events or messages to another.
Hollow dot with a dot inside it	One end of a sync where two replicas exchanges messages, possibly reaching some consensus.
Dotted timeline	Elided time and or local events. To convey hidden, not relevant events.

Conventions of the placements

Time flows in the direction of the arrows of the timeline. A recv event is usually drawn a centimeter further in the direction of time, so every message arrow follows the direction of time without the diagram needing padding put in by hand.

Normally, labels are centred w.r.t their own mark and sit on the orientation’s default position. There are two exceptions:

• The lane’s opening label on a horizontal diagram, which is nudged forward in time so it does sit next to the replica’s name.

• The default position of send, sync, and recv is computed to be on the other side of the incoming/outgoing arrow. A lane’s own label-position default does not reach those three; every other lane default does.

Columns are (mostly) solved, not authored

You list each replica’s local events in order and name the messages. The layout then puts every event in the earliest column that keeps it after its predecessor on the same replica and after the send of every message it receives.

Two things follow. A diagram stays correct while you insert events – nothing needs re-padding, because no position along the time axis needs ever be written by hand. And a receive that would land before its own send is a causal cycle, which fails compilation.

Figures and cross-references

Attach the <label> after the call. With a caption the function returns a figure, so the reference resolves to it and it numbers alongside the document’s other figures.

#lamport-diagram(
  caption: [`DeleteFile1` can be applied twice under concurrency],
  replicas: ("B", replica("A", below)),
  events: (
    "B": ([AddFile1], send("push"), [DeleteFile1], recv("pull", label-size: 0.8em)[now duplicated]),
    "A": (recv("push", mark-displacement: 0), [DeleteFile1], send("pull")),
  ),
) <fig-duplicated-delete>

As @fig-duplicated-delete shows, ...

---

[1]

As an example of semantics you might consider sync. This symbolism is actually a convenience over a whole synchronization protocol. The protocol should provides the expected guarantees that both replicas will agree on the exchanged values.

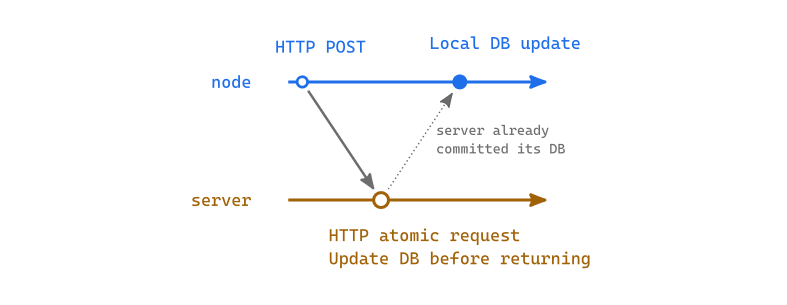

In practice a sync might really look like

We have implemented a replicated system, in which syncs can be retried so that failure in the node after the server’s HTTP handler committed, but before the node’s DB commit happened can be achieved by simply executing the same SYNC protocol.
