Overlays

This page describes the overlays argument of lamport-diagram. Overlays allow to draw arbitrary CeTZ into a diagram; using the diagram’s own coordinates and at a chosen depth.

Terminology, values and types

The entries of the locator – the dictionary a drawing is handed, described under Shape – take and answer in a handful of kinds of value, and the kinds are worth keeping apart:

time

A position along logical time. It is a real number placed along the axis the timelines run on. 0 is the first column. The solver starts every point there and only increases 0. Times are what let a drawing be placed at, before or after any moment the diagram holds – -0.5 falls before the first column, and 1.5 midway between the second column and the third (if any).

column

One of the whole times the solver hands out, 0 up to ncols - 1. Every column is a time. This is the discrete points in the timeline the layout solver reasons about, and the only kind that can answer “did these two land at the same moment” [1]. Columns count from 0, so a lane’s opening point sits in column 0 unless it is displaced. See Addressing a point.

lane

A position on the replica axis, a real number: 0 is the first replica, 1 the second, 0.5 between them, and -0.4 a little to the outside of the first. It is a position and not an index, so -1 is one lane clear of the first rather than the last one; for that, ask replicas how many there are. A replica id is accepted wherever a lane is.

coordinate

A CeTZ point, (x, y) in canvas centimeters. It is what every CeTZ function wants, and the only kind here that knows which way the diagram runs.

rectangle

A pair of coordinates – two opposite corners – handed back as arguments, so it spreads straight into rect. It is measured off what the diagram actually drew, and it takes a pad that grows it.

A time and a lane together make a coordinate, and point is the one entry that does that conversion. Everything else either hands you a coordinate outright or stays in times and lanes, where it survives a change of orientation. A rectangle hands out coordinates and survives it too, because what fixes one is the part of the diagram it is asked for and the pad it is grown by, and neither of those is a position on the page.

Shape

overlays takes none, a bare CeTZ body, a function of one argument – the locator – returning a CeTZ body, or a dictionary from layer name to either of those. A body or a function on its own goes in the foreground, that being what you want when you have not thought about depth.

// nothing
overlays: none,

// a bare body, for when you need no points -- drawn in foreground
overlays: { grid((0, 0), (8, -3)) },

// a function, for when you want the diagram's points -- drawn in foreground
overlays: d => {
  let (mark, ..) = d
  circle(mark("A", "bad"), radius: 0.3, stroke: red)
},

// a dictionary, for when layering matters
overlays: (
  backdrops: d => { ... },
  marks: d => { ... },
),

Everything is spliced into the diagram’s own cetz.canvas, so a coordinate is a canvas centimeter and every CeTZ coordinate form – rel:, to:, anchors on elements you name yourself – works as it does anywhere else. It all runs inside the same context the diagram uses, so measure is available.

Your body is written in your own file, though, so the drawing commands have to be in scope there. The package re-exports the CeTZ module it draws with, which saves pinning a second dependency and keeps the two versions in step:

#import "@preview/lamportian-dramatis:0.3.0": draw

overlays: (
  marks: d => {
    import draw: *          // inside the body, so `circle` and `rect` go no further
    ...
  },
)

#import draw: * at the top of the file works as well, if you would rather have them everywhere. The locator carries that same module under draw, so a body can take it from there and import nothing at all – let (draw, mark, ..) = d, and then draw.circle(..).

The locator is a dictionary; unpack the entries a layer needs and call them.

Layers

A diagram is drawn in a fixed sequence of passes: the arrows first, then the backdrops that erase them wherever a lane crosses, then the timelines, then the marks, then the labels. Each pass is a layer, and each key of overlays names one.

An overlay given for a layer is appended to that layer’s pass – after everything the diagram itself draws there, and before anything in any later pass. So arrows: ... draws with the contents of the layer “arrows”: over them, under everything that follows. That is the whole rule.

background and foreground are not passes of the diagram. They are bookends that exist only for overlays, one before the first pass and one after the last, and whatever you put there is all they hold.

Bottom to top:

Layer	Content	Usage in overlays
background	–	a wash behind the whole diagram, striped by the backdrops like everything under them
arrows	the message and sync arrows, and their labels	annotating one arrow, with the lanes still passing over your drawing the way they pass over its arrow
backdrops	the translucent white band that fades an arrow wherever a lane crosses it	a fill that comes out even rather than striped, still under every lane
timelines	the lane lines and the replica names	something along a lane that the lane’s own dots sit on top of
marks	the dots	a ring round a dot that the dot’s own label stays readable over
labels	the event labels, and the labels on the ends of a message	something belonging with the labels, over them but still under anything in foreground
foreground	–	the last word: annotation read over the whole drawing, this layer included

The order is the table’s, never the dictionary’s: a dictionary that happens to list foreground first still draws it last. A key that is not a layer fails compilation, and says which names are.

labels and foreground land next to each other, the diagram drawing nothing between them, and they are still two layers rather than one: give both and labels draws first. What separates them is not what lies between but what they mean – labels joins the diagram’s own last pass, foreground sits above everything, that pass included.

The layers are part of the API

Their names and their order are not an internal detail to be read off this page. layers is the ordered array of them, bottom to top, and the package exports it:

layers (value)

An array with known layers. It is just the array:

("background", "arrows", "backdrops", "timelines", "marks", "labels", "foreground")

They are plain strings, so overlays: (marks: ...) needs no import. layers is for when you want to check a name, walk the stack, or build an overlays dictionary out of something that is not a literal.

arrows and backdrops are not the same place

They sound like one place – “just above the arrows”, “just under the lanes” – and the difference between them is most of why the layers are worth having.

What makes an arrow pass behind a lane is a translucent white band. Before any lane is drawn, the diagram strokes white at 88% opacity, five points wide, along every lane, and lays a disc of the same under every mark. That is the backdrops pass. On a white page the band shows nowhere it has nothing to cover; where it crosses an arrow it leaves a tenth of that arrow showing, which reads as the arrow running underneath rather than as a gap cut in it.

So nothing is washed by the lanes. Things are washed by that band, and whether yours is washed depends only on which side of it you drew:

• At background or arrows you draw first and the band goes down over you. A fill comes out with a paler five-point stripe along every lane – the same fading the arrows get, and it keeps its hue, since the band is translucent rather than a lid.

• At backdrops the band is already down and you draw over it. A fill covers page and band alike, so it comes out even – and still sits under the timelines, the marks and the labels, all of which come later.

Which you want depends on what the drawing means. A note belonging to one arrow reads better at arrows, breaking around the lanes the way its own arrow does. A band standing for a stretch of time belongs at backdrops: it is not something the lanes should be in front of, it is the ground they stand on.

(The band is white whatever the page is. Give the page a fill other than white and every lane will show as a pale stripe across it, because the band was only ever invisible by matching the white it was drawn on.)

Addressing a point

Every point on a lane is (replica, id). The id is either the index of the event in the lane, the argument id to event, or the name given to send, recv and sync.

mark("A", "bad")        // an event, by the id it was given
mark("S", "a-pushes")   // this end of the sync;  mark("A", "a-pushes") is the other
mark("C", "c-pushes")   // the send;  mark("S", "c-pushes") is its recv

By index

Anywhere an id is taken an integer is taken too, addressing the lane positionally, 1-based, counting every item in the lane’s array including gap and idle. It numbers the array and nothing else – the columns the solver hands out count from 0, so the first item on a lane is index 1 and column 0:

mark("A", 1)      // the lane's opening item
mark("A", 3)
mark("A", -1)     // the last item -- the one index that survives an insert
column("B", 2)    // and the same wherever else a point is asked for

Ids are strings and indices are integers, so the two never need telling apart by hand. An index is what to reach for when naming a one-off is not worth it – bearing in mind that it moves when you insert an event above it, which is exactly what an id does not do.

What the locator holds

mark(replica, id-or-index) (locator)

Return the CeTZ coordinate of the mark the diagram drew for that point – a local event, or either end of a send, recv or sync. It includes the sub-column mark-displacement that leans an arrow off a straight run across the lanes, so it is where the dot really landed rather than where its column nominally is.

A coordinate has a lane baked into it: the lane of the replica you named. That is the whole difference from column, and it is what makes column the one to reach for when a drawing crosses lanes.

mark-args(replica, id-or-index) (locator)

Return everything the diagram used to draw that mark – its coordinate, radius, fill and stroke – as arguments ready to spread into circle. A gap or an idle draws no mark, so for those it returns none.

It is for restating a mark rather than placing something near it. Spread it and override what you want changed; a later argument wins, so the rest stays whatever the diagram chose:

  // Tint three marks, keeping the radius and the ring the diagram gave them.
  for point in (("S", 3), ("S", 4), ("A", "a-catches-up")) {
    circle(..mark-args(..point), fill: red.transparentize(55%))
  }
})

The diagram draws its own marks from exactly this, which is the point of it: a hollow ring for a point where the replica touches the network, a solid dot for a purely local step, a send drawn smaller than the receive it feeds. None of that has to be restated, and a drawing that spreads mark-args follows the library if any of it ever changes.

A sync’s ring carries a dot inside it, and that dot is a second circle rather than part of the first – pip-args is where it comes from.

pip-args(replica, id-or-index) (locator)

Return the dot inside that point’s ring, as arguments ready to spread into circle – or none for a point that carries none, which is every kind but a sync. It is drawn over the mark’s own fill, so a drawing that restates both puts this one second.

The diagram draws that dot from exactly this, the same way it draws the ring from mark-args. So an overlay that recolors an end of an exchange has both halves of it to hand:

circle(..mark-args("A", "a-pushes"), fill: red.transparentize(55%))
circle(..pip-args("A", "a-pushes"), fill: red)

message-args(from, to) (locator)

Return everything it takes to draw a message arrow between two points – the shaft, the stroke and the head – as arguments ready to spread into line. Each end is a (replica, id-or-index) pair, the way a point is named everywhere else:

// The reply a sync hides, drawn as the message it is.
line(..message-args(("server", "http-request"), ("node", -1)))

The shaft stops short of the mark at each end, by as much as the diagram’s own arrows stop short of theirs. That is the reason to reach for this instead of running a line between two mark coordinates: an arrow drawn to the middle of a mark reaches into the mark and into the backdrop the mark carries, so it reads as striking the dot rather than as arriving at it.

The diagram draws its own messages from exactly this, and a sync from the same thing with a head at each end. Spread it and override what you want changed, the way you would mark-args. mark is one dictionary, though, so a head of your own replaces the fill and the scale too. Spread what the spec already holds to keep those – spec.at("mark"), an arguments being read with at and never with brackets:

let spec = message-args(("server", "http-request"), ("node", -1))
line(..spec, mark: (..spec.at("mark"), end: "triangle"))

message-mid(from, to) (locator)

Return the coordinate of the middle of that same shaft, from the same two ends. It is to an arrow an overlay draws what arrow-mid(name) is to one the diagram drew: the place an arrow’s own label goes before it is stepped off the shaft, and so the place to hang a note.

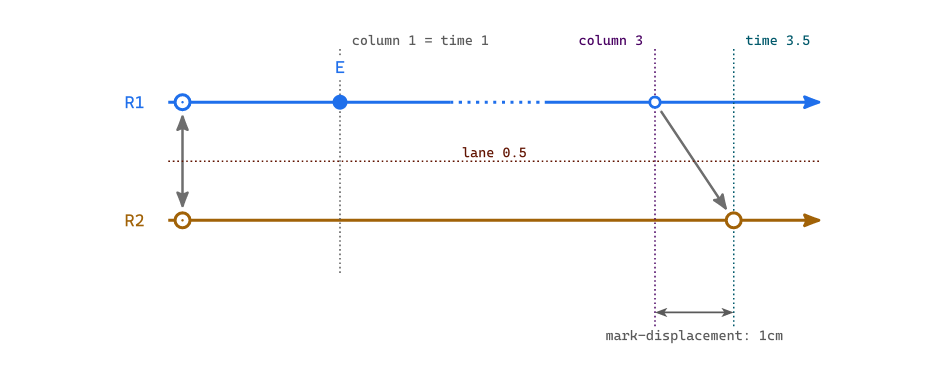

column(replica, id-or-index) (locator)

Return the column the solver put that point in: a whole number, 0 up to ncols - 1. It carries no lane and no displacement – it is the moment, and nothing about where on the page that moment was drawn.

mark and column ask the same question and answer in different kinds, and that is the whole distinction. You want the column whenever what you are drawing crosses lanes, because a coordinate is already on a lane. A column is a time, so it goes straight into point:

rect(
  point(column("C", "c-reads"), -0.4),
  point(column("A", "a-catches-up"), last + 0.4),
  fill: yellow.transparentize(85%),
  stroke: none,
)

mark("C", "c-reads") cannot start that rectangle: it sits on C’s lane, not on the first one. So the two compose – column gets the moment, point puts it on whichever lane you meant.

column is also what to reach for when you want to reason rather than draw. column("A", "x") == column("B", "y") is “the solver found nothing ordering these two”, which is a real question to ask of a Lamport diagram.

time(replica, id-or-index) (locator)

Return the time that point’s mark was drawn at – i.e. the column it was solved into, plus whatever mark-displacement off that column.

It is a time, so it composes with a lane: point(time("C", "c-reads"), "C") is exactly mark("C", "c-reads") – the same place, said in the diagram’s own axes rather than on the page. That is what makes it the one to reach for when a drawing has to line something up with a mark across the lanes, which a coordinate cannot do.

lane(replica) (locator)

Return the lane a replica is on: 0 for the first of replicas, 1 for the next, and so on. A number comes back unchanged, so a lane between two replicas is said the same way as a lane on one – (lane("A") + lane("B")) / 2 is the lane halfway between them, ready for point:

let between = (lane("A") + lane("B")) / 2
line(point(s, between), point(e, between), stroke: (paint: red, dash: "dashed"))

It is the mirror of time: one answers a position along the timelines, the other a position across them, and both are in the diagram’s own axes. Every entry that takes a lane runs it through this, which is why an id and a number are interchangeable wherever one is asked for.

point(time, lane) (locator)

Return the coordinate of a time on a lane.

It is the entry that turns a time and a lane into a position on the page, which is what makes it the one to write a drawing in terms of – see below.

The rectangles

The five that follow answer with two opposite corners, so each spreads straight into rect – or into anything else that takes two, content included. Naming that rect leaves CeTZ holding the anchors, which is what lets a note be hung off the box instead of off a position worked out by hand:

rect(..gap-rect("R1", 3, pad: (0, 0.14)), stroke: (paint: gray, dash: "densely-dotted"), name: "elided")
content("elided.north", anchor: "south", text(fill: gray, [elided time]))

pad grows a rectangle on every side, in canvas centimeters. One number pads all four the same; a pair pads in the diagram’s own axes – how far along the timelines, how far across them – which is what keeps a padded box the same box when the diagram is turned on its side:

gap-rect("R1", 3)                  // exactly the dotted span, and nothing more
gap-rect("R1", 3, pad: 0.1)        // a millimeter of air on every side
gap-rect("R1", 3, pad: (0, 0.14))  // tight in time, standing clear of the lane

Unpadded, a rectangle is exactly the part it names, and that is what makes it worth asking for: the diagram sets its names and its labels into the very boxes names-rect hands out, interrupts a lane over the very stretch gap-rect answers with, and runs its arrows between the very points arrow-mid takes the middle of. None of it is re-derived, so none of it can drift.

lane-rect(lane, pad: 0) (locator)

Return the rectangle round the whole strip a lane occupies: from where its line leads in to past the arrowhead, and as thick across as the band the lane erases behind itself. It holds every mark on that lane and no label off it, and it stops short of the replica name, which has names-rect of its own.

gap-rect(replica, index, pad: 0) (locator)

Return the rectangle round exactly the dotted span of one gap, as thick across as its lane. A gap carries no id, so name it by its index on the lane – a negative one counting back from the end. Naming a point that is not a gap fails compilation, saying which kind it found there.

names-rect(pad: 0) (locator)

Return the rectangle that surrounds a written part of the diagram. It takes up to two positional arguments, and each one narrows what it answers for:

names-rect()               // the strip that holds all replica names
names-rect("A")            // that one replica's name
names-rect("A", "a2")      // the label of that one point on it

With no argument it is the strip the replica names are set in: the column the diagram keeps clear before the lanes begin.

With a replica name, it is that one name’s own box.

With a replica name and a point on it – by id or by index, the way every other point is named – it is the box the label of that point went in. The side the label sits on and the label-displacement it carries have already moved it, and the box follows the label there. It is the box the label’s label-padding fills, or the label’s own box where label-padding: none drops that backdrop, so a rectangle asked for here lands round the label and not round the mark the label belongs to:

  // A rounded box round one label, in the lane's own color.
  let (names-rect, color-of, draw, ..) = locators
  draw.rect(..names-rect("A", "a2", pad: 0.05), stroke: color-of("A") + 0.5pt, radius: 0.05)
},

Important

Naming a gap, idle, or any events (including send, sync, or recv) without a content fail compilation.

arrow-rect(name, pad: 0) (locator)

Return the rectangle round a message or a sync, by the name that pairs its two ends: the shaft together with both the marks it runs between, so a box drawn round an exchange reads as round the exchange rather than round the gap in the middle of it.

arrow-mid(name) (locator)

Return the coordinate of the middle of that arrow’s shaft – where the diagram sets an arrow’s own label, before stepping it off the shaft. A note hung here hangs where a label would have.

color-of(replica) (locator)

Return the color that replica’s timeline and marks are drawn in, so a drawing can match a lane rather than restate its color. A lane between two replicas has none, so this takes a replica and not a lane. Next to mark-args it is the smaller tool: for when you want a lane’s color and nothing else.

span (locator)

Two times: the one each lane’s line starts at, and the one it ends at. The first is slightly negative, because a lane leads in a little before column 0; the second is past ncols - 1, because the line runs on beyond the last mark to carry its arrowhead.

replicas (locator)

The replica ids, in order. The id at index n is the replica on lane n – for turning one id into a lane, reach for lane instead; this is for a drawing that walks every replica, or asks how many there are.

ncols (locator)

How many columns the diagram was solved into, so the last of them is ncols - 1.

orientation (locator)

Which way this diagram runs, as its canonical name: rightwards, leftwards, downwards or upwards. The two shorthands resolve to the direction they stand for, so a drawing that tests this never has to test for horizontal or vertical as well.

draw (locator)

The CeTZ module the diagram draws with – the same one the package re-exports, for a body that would rather unpack it than import it: let (draw, mark, ..) = d, and then draw.circle(..).

col-gap (locator)

row-gap (locator)

The step from one column of logical time to the next, and the step from one lane to the next, both in canvas centimeters. They are the scale the diagram is drawn at: a time becomes a distance on the page when you multiply it by col-gap, and a lane when you multiply it by row-gap.

Use them to state a distance in the diagram’s own terms. A brace set half a column clear of the last mark stays half a column clear after you retune col-gap. A brace set at +1.0 does not.

dot (locator)

The radius of the mark on a local event, in canvas centimeters. A recv and a sync are drawn at this radius, and a send at seven tenths of it.

Reach for it to size a mark of your own against the marks the diagram draws. A mark that restates one the diagram already drew takes mark-args instead, which carries the radius with it.

dot is a radius, not a step between columns or lanes. It does not change when you retune col-gap or row-gap.

Staying orientation-independent

point(time, lane) is stated in the diagram’s own axes – logical time along the lanes, and lanes across it – so a drawing written in terms of it survives a flip from horizontal to vertical. One written against raw (x, y) arithmetic does not:

  line(point(2, "A"), point(2, "C"))   // flips cleanly
  line((4, 0), (4, -3))                // does not
})

Fractional lanes are what make this work for nudges too. “Just off the lane, toward the next one” is point(c, 0.15) whichever way the diagram runs, where a page-space (0, -0.3) would point the wrong way the moment it turned.

span stays in times for the same reason, and it is what lets a drawing run the full length of a lane without knowing where on the page that lane falls:

overlays: (
  timelines: d => {
    let (span, point, ..) = d
    let (s, e) = span
    line(point(s, "B"), point(e, "B"), stroke: (paint: red, dash: "dashed"))
  },
),

That line lies along the lane, so the layer decides whether it shows at all: at backdrops the lane’s own stroke would cover it, at timelines it is drawn over that stroke instead. To sit beside the lane rather than on it, feed the same span to a fractional lane – point(s, 1.12) to point(e, 1.12) – which is the pairing coordinates would not have allowed.

Errors

• An unknown replica id, an unknown point id, or an index past the end of a lane fails compilation, naming what was asked for and what that lane actually holds.

• Two points on one lane sharing an id fails compilation.

• gap-rect given a point that is not a gap fails compilation, naming the kind it found there. An arrow name that is neither a message nor a sync fails the same way.

• names-rect given a point that carries no label fails compilation, and so does a third positional argument.

• message-args given an end that is not a (replica, id-or-index) pair fails compilation, and so does one point given as both ends.

• A pad that is neither a number nor a pair of them fails compilation.

• A layer name that is not in layers fails compilation, and says which names are.

• An overlays that is none of none, a dictionary, a function of one argument, or a CeTZ body fails compilation.

Worked example

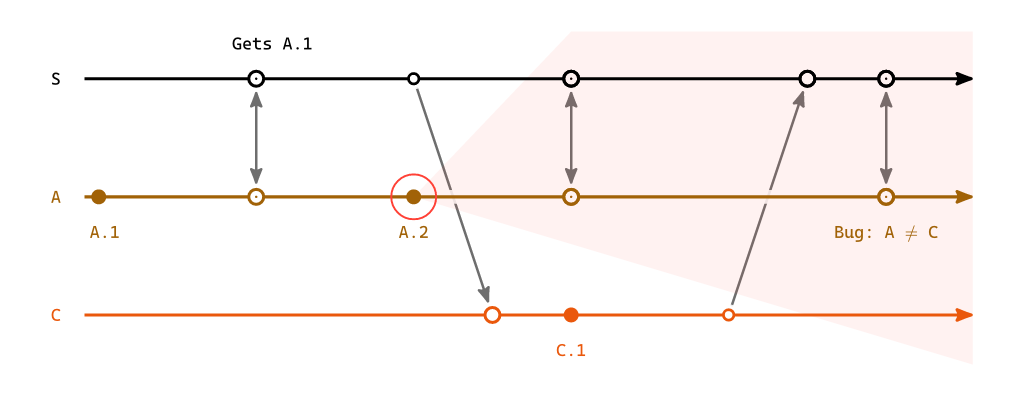

The future cone of A.2, drawn at backdrops so the lanes cross it without fading a stripe through it, and a ring at marks so A.2’s own label stays legible over it.

#import "@preview/lamportian-dramatis:0.3.0": lamport-diagram, replica, event, send, recv, sync, above, below, draw

#lamport-diagram(
  replicas: (replica("S", above, color: luma(0)), replica("A", below), replica("C", below)),
  events: (
    "S": (sync("boot"), send("c-reads"), sync("a-pushes"), recv("c-pushes"), sync("a-catches-up")),
    "C": (recv("c-reads"), event(id: "c1")[`C.1`], send("c-pushes")),
    "A": ([`A.1`], sync("boot"), event(id: "a2")[`A.2`], sync("a-pushes"), sync("a-catches-up")),
  ),
  overlays: (
    // The future cone of `A.2`: the part of the diagram that event can still reach.  It opens one
    // lane per column from where the event happened, and once it has taken in every replica there is
    // nothing left to open into, so it runs on as a band.  Over the backdrops, so the lanes do not
    // fade a stripe through it, and still under every timeline.
    backdrops: d => {
      import draw: *
      let (column, point, replicas, span, ..) = d
      let (_, ends) = span
      let t = column("A", "a2")
      let lane = replicas.position(r => r == "A")
      let edge = replicas.len() - 1 - lane + 0.4
      let wash = red.transparentize(93%)
      line(
        point(t, lane),
        point(t + edge, lane - edge),
        point(t + edge, lane + edge),
        close: true,
        fill: wash,
        stroke: none,
      )
      rect(
        point(calc.min(t + edge, ends), lane - edge),
        point(ends, lane + edge),
        fill: wash,
        stroke: none,
      )
    },
    // Over the dot, under its label.
    marks: d => {
      import draw: *
      let (mark, dot, ..) = d
      circle(mark("A", "a2"), radius: dot * 3, stroke: red + 0.7pt)
    },
  ),
)

Footnotes

[1]

The actual semantics (simultaneity) are not really defined here. Every author can provide the correct interpretation.
